Slickline Equipment : Rope Socket for Slickline

Slickline Equipment - Rope Socket. Rope Socket is one of most important tool or equipment in Slickline Operation. Placed on the top of tool string configuration, rope socket make the connection between tool string and slickline wire. Several types commonly found, selection generally being depends on slickline wire size and type :
[post_ad]
Slickline Rope Socket knot type
Knot type


  • 0.092", 0.105", 0.108" and 0.125" slickline wire with no - knot type or Tear drop
  • 3/16" braided line, with clamp type

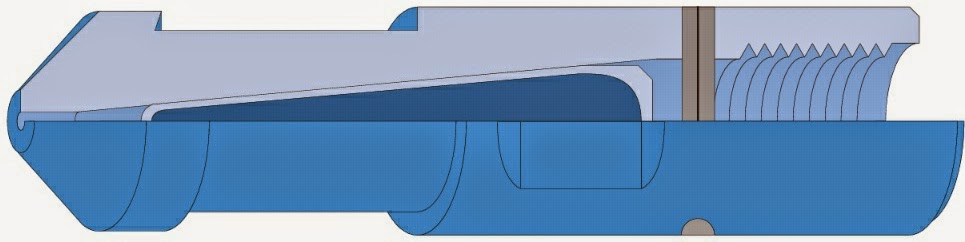

Slickline Rope Socket no knot type (teardrop)
No -  knot type

The important part in rope socket is a fishing neck, there are two type of fishing neck depends on rope socket brand manufacturer. Otis slickline rope socket with 15° and camcorder slickline rope socket with 90°. Please choose carefully depends on your tool string and the pulling tool you have.

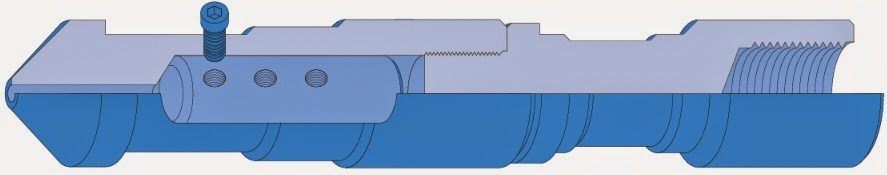

Braided line rope socket clamp type
Clamp type
